Matestation Huawei B520 53013Cgc Ci58Gbssd256 +1Tb 3.5" Y W10Pro

Hardware Configuration

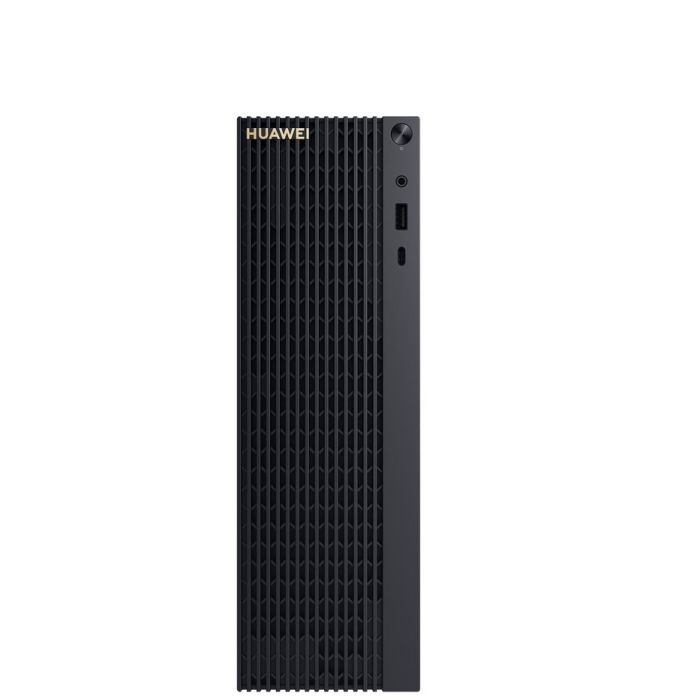

Appearance

Dimensions (with the panel): 293 mm (H) x 93 mm (W) x 315.5 mm (D)

Weight: Approx. 4.2 kg (without hard disk drives)

Color: Black

Processor

Intel® Core i5-10400 Processor

Graphics card

Integrated graphics: Intel® UHD Graphics 630

Memory

2 x DDR4 SO-DIMM memory port, 8 GB/16 GB

Storage

256 GB/512 GB/1 TB NVMe PCIe SSD

1 x 3.5-inch SATA 3.0 7200 rmp 1 TB HDD

256 GB SSD + 1 TB HDD

The storage capacity of each SKU is subject to the data in the configuration table.

Ports on the front panel

1 x 3.5 mm headset jack

1 x USB 3.2 Gen 2 (USB-A) port

1 x USB 2.0 (USB-C) port

Ports on the rear panel

1 x microphone input port + 1 x audio output port + 1 x audio input port

1 x HDMI port

1 x VGA port

2 x USB 3.2 Gen 1 (USB-A) port

2 x USB 2.0 (USB-A) port

1 x RJ45 port, 10M/100M/1000M auto-sensing

1 x serial port

1 x power port. Rated output power: 300 W; AC input: 100–240 V, 4.5 A, 50/60 Hz; DC output: +12.1 V/24 A, +5 V/2.0 A

PCI-e extension port

1 x PCI-e x16 Gen3 port

1 x PCI-e x1 Gen3 port

Audio configuration

Buzzer

Power cable

Output: 250 V/10 A

Connector: C13 3-pin

Cable length: 2 meters

Temperature

Operating temperature: 0°C to 35°C (32°F to 95°F)

Storage temperature: –10°C to +45°C (14°F to 113°F)

Ambient humidity

5% to 95%, non-condensing

Wi-Fi

Standard: IEEE 802.11a/b/g/n/ac/ax Working frequency: 2.4 GHz and 5 GHz Antenna: 2x2 MIMO

Encryption mode: WPA/WPA2/WPA3

Bluetooth

Standard: Bluetooth 5.1

Software Specifications
Operating

system

Windows 11 Pro (64-bit)


Third-party apps

Pre-installed Microsoft Office Home and Student (for the Chinese mainland only, with Key values not provided)

Third-party apps can be installed and uninstalled and follow

local strategies.


Updates

Online updates


Fans

CPU fan

System fan

Other

Power indicator
